Export Packing & Installation Preparation
Protecting the finished display and preparing it for the team receiving it.
Custom retail displays can include high-gloss paint, mirror finishes, acrylic, glass, lighting, oversized structures and multiple assembly components--each creating different risks during handling and transport. Samtop develops packing and installation preparation around the finished display, with attention to surface protection, component organization, part identification and local setup requirements.
Packing is part of project execution.
Packing Should Follow the Display--not a Standard Box
A mirror-finish metal panel, acrylic component, glass cover and oversized painted prop do not create the same shipping risks. Packing therefore needs to consider the material, surface finish, weight, geometry, protruding components and assembly method of the actual display.
Mirror & Plated Surfaces
- --Scratching & rubbing
- --Fingerprints
- --Surface contact damage
- ·Protective film
- ·Soft separation
- ·Individual wrapping
- ·Non-abrasive contact surfaces
Acrylic Components
- --Scratches
- --Cracking
- --Edge damage
- ·Surface film
- ·Foam separation
- ·Edge protection
- ·Movement control
Glass Components
- --Impact
- --Edge damage
- --Pressure
- ·Isolation
- ·Edge protection
- ·Rigid support
- ·Movement control
Oversized Structures
- --Protruding sections
- --Uneven load
- --Movement during transit
- ·Custom support
- ·Component separation
- ·Fixed position
- ·Crate / pallet planning
Multi-Component Assembly
- --Missing parts
- --Wrong assembly order
- --Mixed hardware
- ·Part numbering
- ·Grouped components
- ·Hardware kits
- ·Packing list / reference photos
The objective is not simply to fit the display into a box. It is to reduce the risks created by the display itself.
Protecting the Surfaces Customers Actually See
Retail displays often rely on visually sensitive finishes. Protection needs to consider not only impact during transport, but also contact, rubbing and pressure between finished components.
Mirror, Plated & High-Gloss Finishes
Highly reflective surfaces can make scratches, rubbing marks and handling damage particularly visible.
- ·Protective film
- ·Soft wrapping
- ·Component separation
- ·No direct surface-to-surface contact
- ·Corner / edge protection where required
Acrylic Protection
Acrylic surfaces and polished edges require protection from scratching, pressure and uncontrolled movement during transport.
- ·Surface film
- ·Foam separation
- ·Edge protection
- ·Individual compartments
- ·Movement control
Glass & Fragile Components
Glass, delicate logos and protruding decorative parts may require separation from heavier structural components.
- ·Rigid separation
- ·Edge protection
- ·Cushioning
- ·Controlled positioning
- ·External identification where appropriate
Painted Structures & Display Props
Painted surfaces and irregular shapes can create contact points that are difficult to protect with standard packing alone.
- ·Custom foam
- ·Support blocks
- ·Protected contact points
- ·Fixed orientation
- ·Crate or pallet support where required
When a Display Ships in Parts, Every Part Needs a Clear Place
Large or multi-component displays may need to be disassembled after trial assembly for safer or more practical transport. Part identification, hardware organization and packing sequence can make it easier for the receiving team to understand what belongs together.
Preparing Components for Local Setup
For displays assembled after delivery, clear component identification can reduce confusion during unpacking and setup.
Part Numbering
Components can be identified according to the assembly structure where required.
Hardware Kits
Screws, fittings and other installation hardware can be grouped and identified for the relevant assembly section.
Packing Labels
Outer cartons, crates or component packages can be identified to help the receiving team locate the correct parts.
Packing List / Component Reference
Multi-component projects can be organized with packing information showing which components are contained in each package.
Good packing should help the receiving team understand the project before every component is unpacked.
Installation Preparation for the Local Team
Samtop does not provide overseas on-site installation, but the project can be prepared to make local assembly clearer.
Where required, information gathered during engineering review and trial assembly can be organized into practical references for the team receiving and assembling the display.

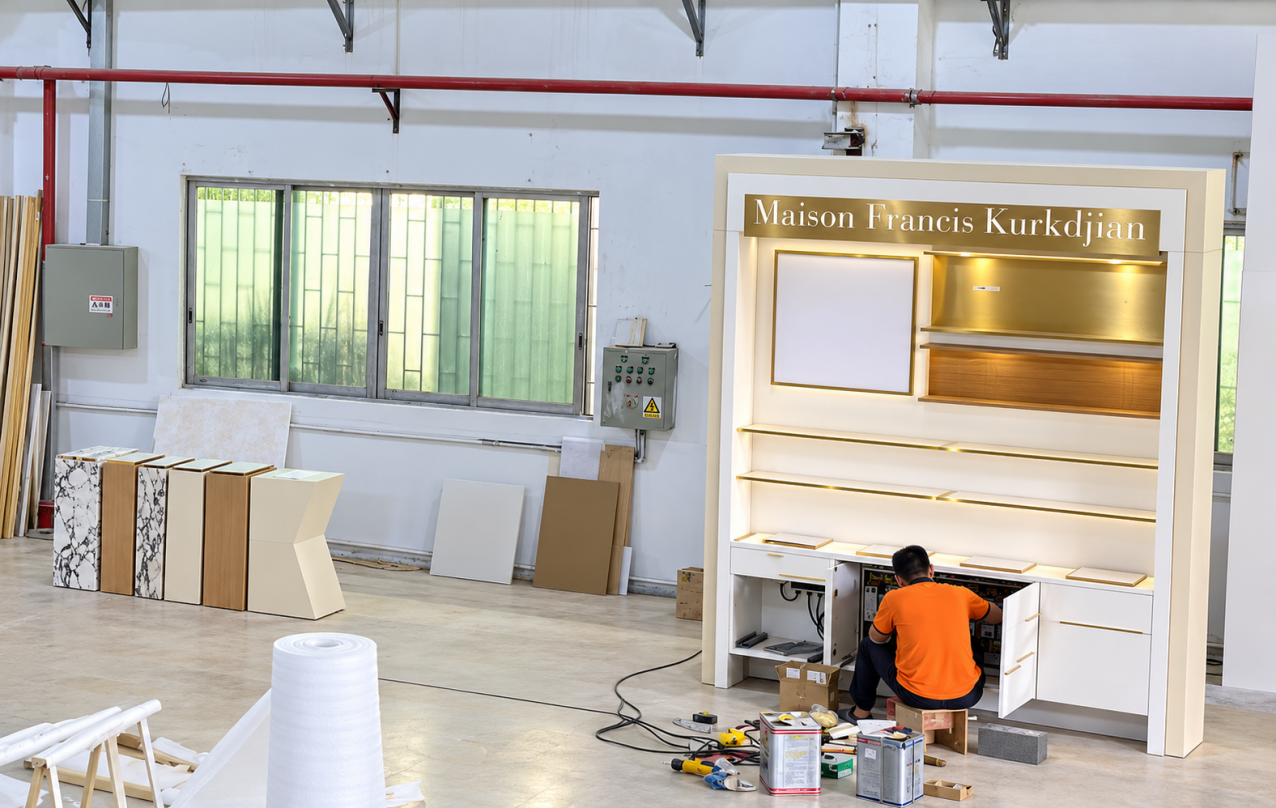

Trial Assembly
The display or critical sections can be assembled before packing to confirm fit and assembly sequence.
Part Numbering
Components can be numbered to correspond with the assembly structure.
Assembly Photos
Photos taken during trial assembly can provide visual references for reassembly.

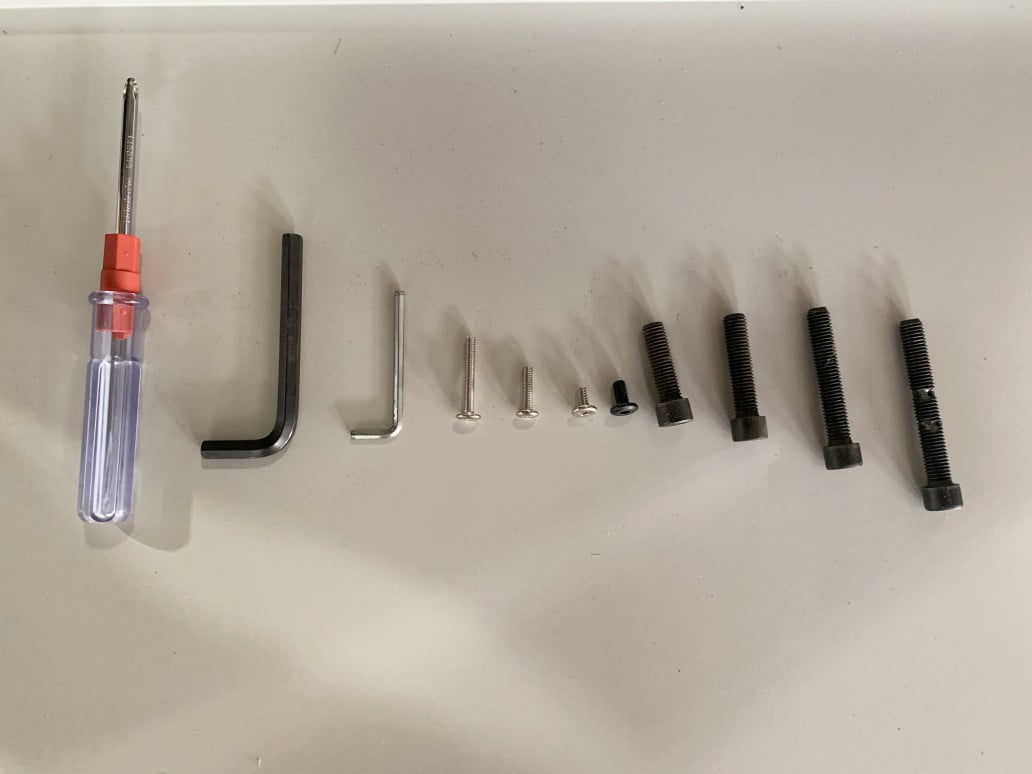

Hardware Identification
Screws, fittings and installation hardware can be grouped and labeled.
Packing Sequence
Components can be organized with unpacking and reassembly in mind where practical.
Setup Reference
Project-specific reference information can be prepared where required based on the agreed scope.
Samtop provides installation preparation and local setup support materials. We do not provide overseas on-site installation services. The scope of preparation is agreed per project.
Export Packing in Practice
Packing details are easier to understand through the actual preparation process than through a generic description.

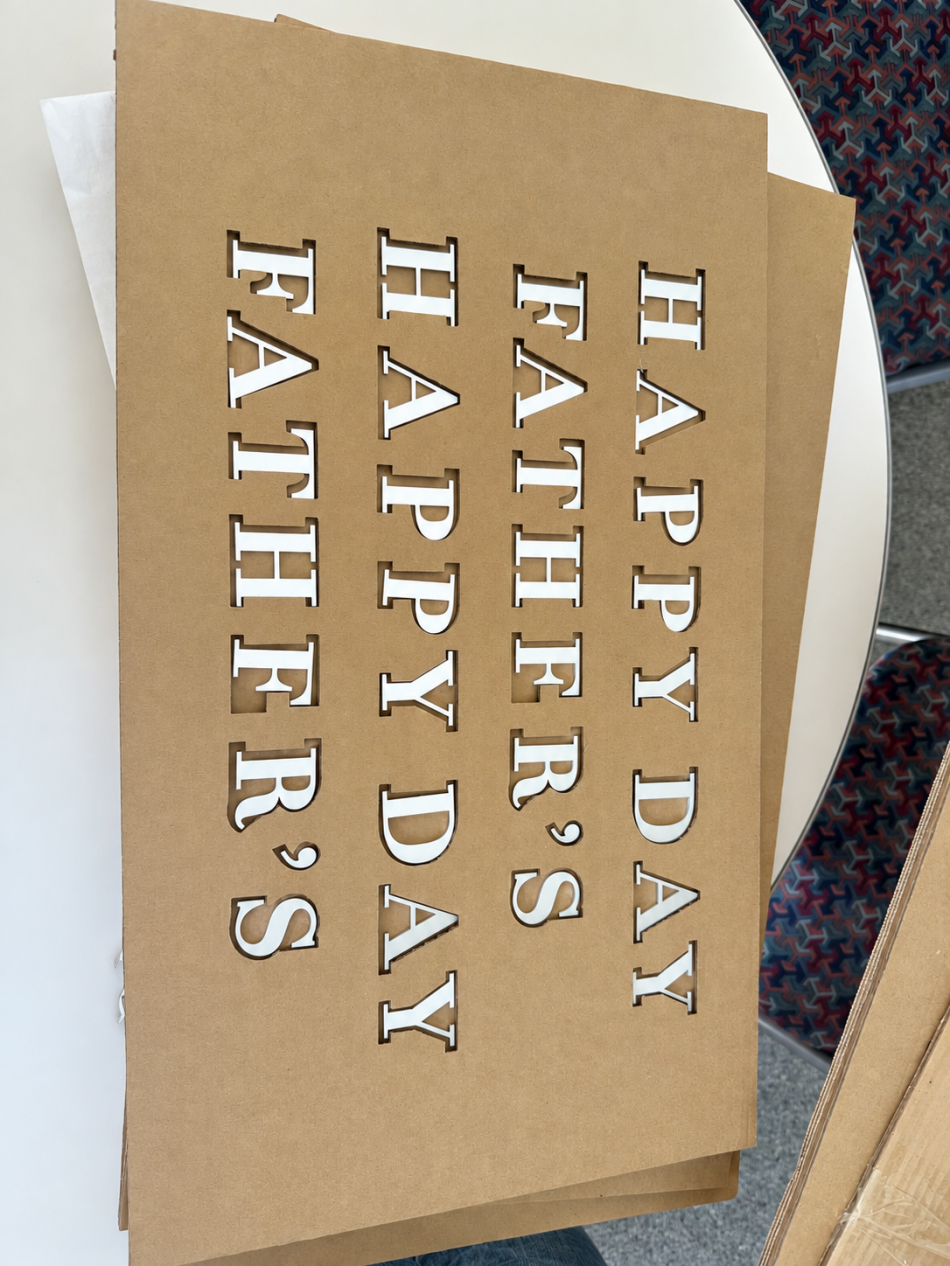

Protecting a visually sensitive finished surface before contact with other packing materials.
Adding protection around vulnerable edges and corners.
Separating finished components to reduce rubbing and movement during transport.
Identifying components for unpacking and local reassembly.
Grouping and labeling installation hardware by assembly section.
Organizing protected components into the final carton, crate or pallet configuration according to project requirements.
What We Consider Before Final Packing
Packing is not the last five minutes of a project. For complex displays, packing requirements may need to be considered during engineering--not only after production is complete.
Discuss Your ProjectExport Packing & Installation Preparation FAQs
How do you pack high-gloss, mirror or acrylic display surfaces?
Can displays be packed in separate components?
Can you number parts for local assembly?
Do you provide overseas installation?
Planning a Retail Display Project for Overseas Delivery?
Send us your rendering, drawing and available project information. We can review the structure, finish, assembly and packing considerations that may affect how the display should be prepared for delivery.
