Custom Retail Display Prototyping & Sample Development
Find and fix production issues before mass production. We build custom retail display prototypes based on your approved renderings and technical drawings -- helping brands and retail design agencies confirm materials, product fit, graphics, and function before production begins.
Photos show Samtop prototyping work across different projects. They are not from a single continuous project.
Design vs. Physical Reality

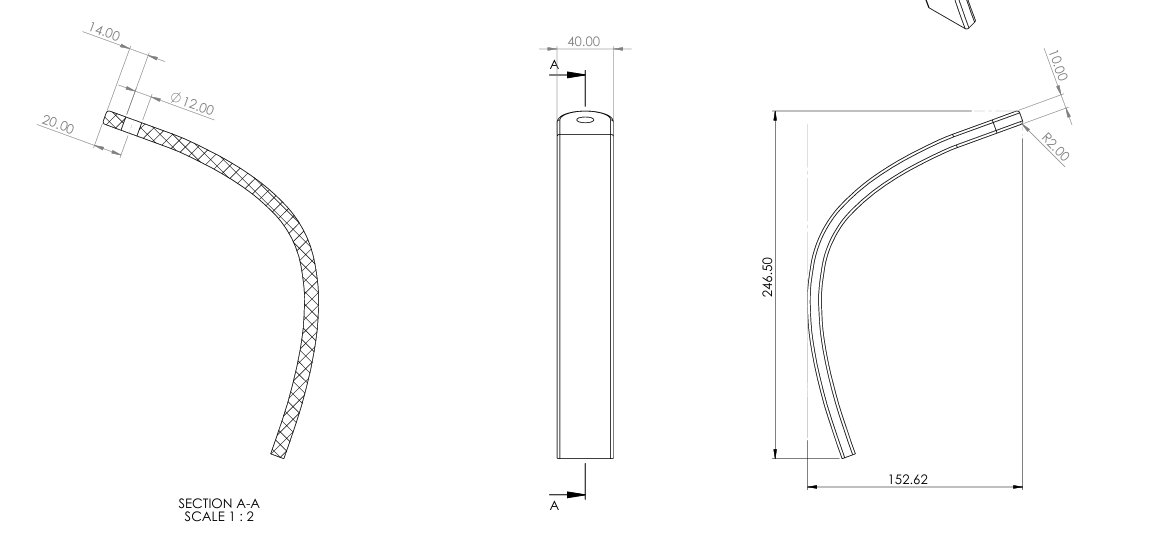

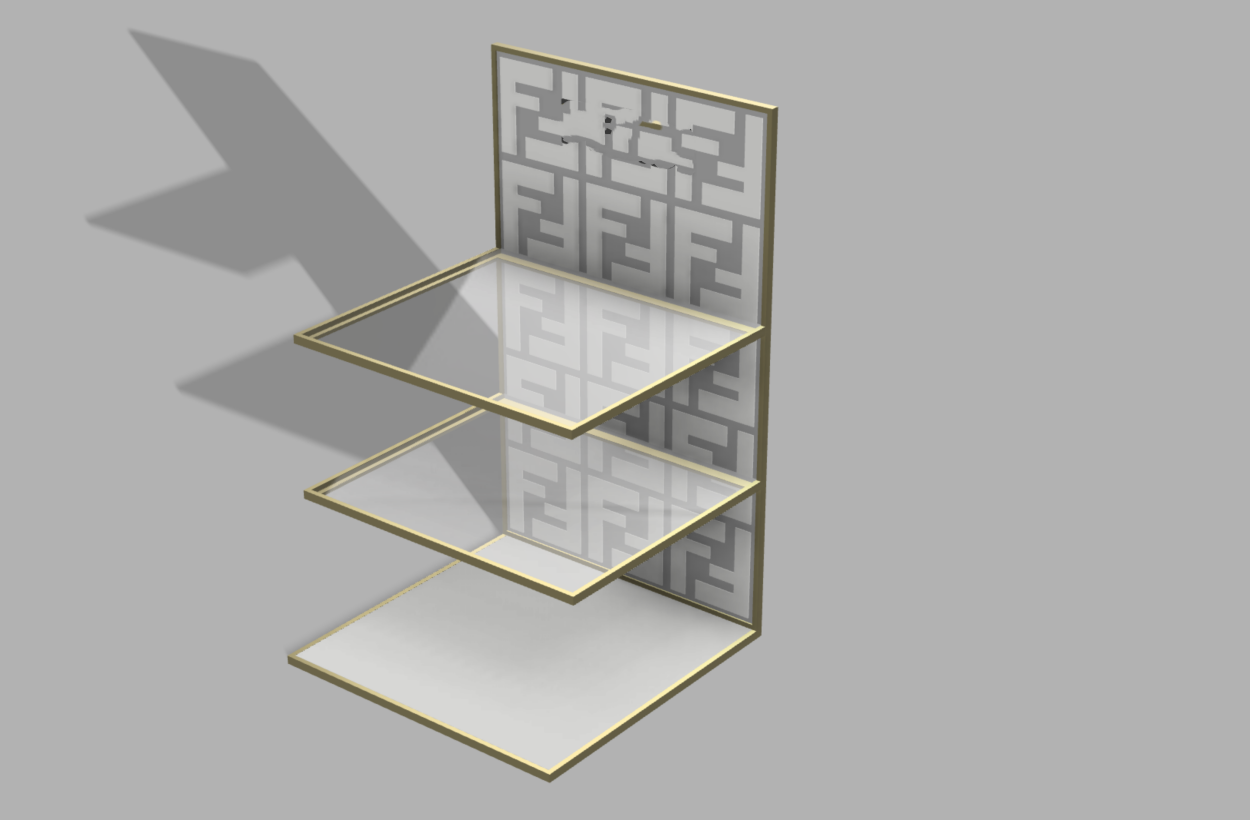

Approved rendering

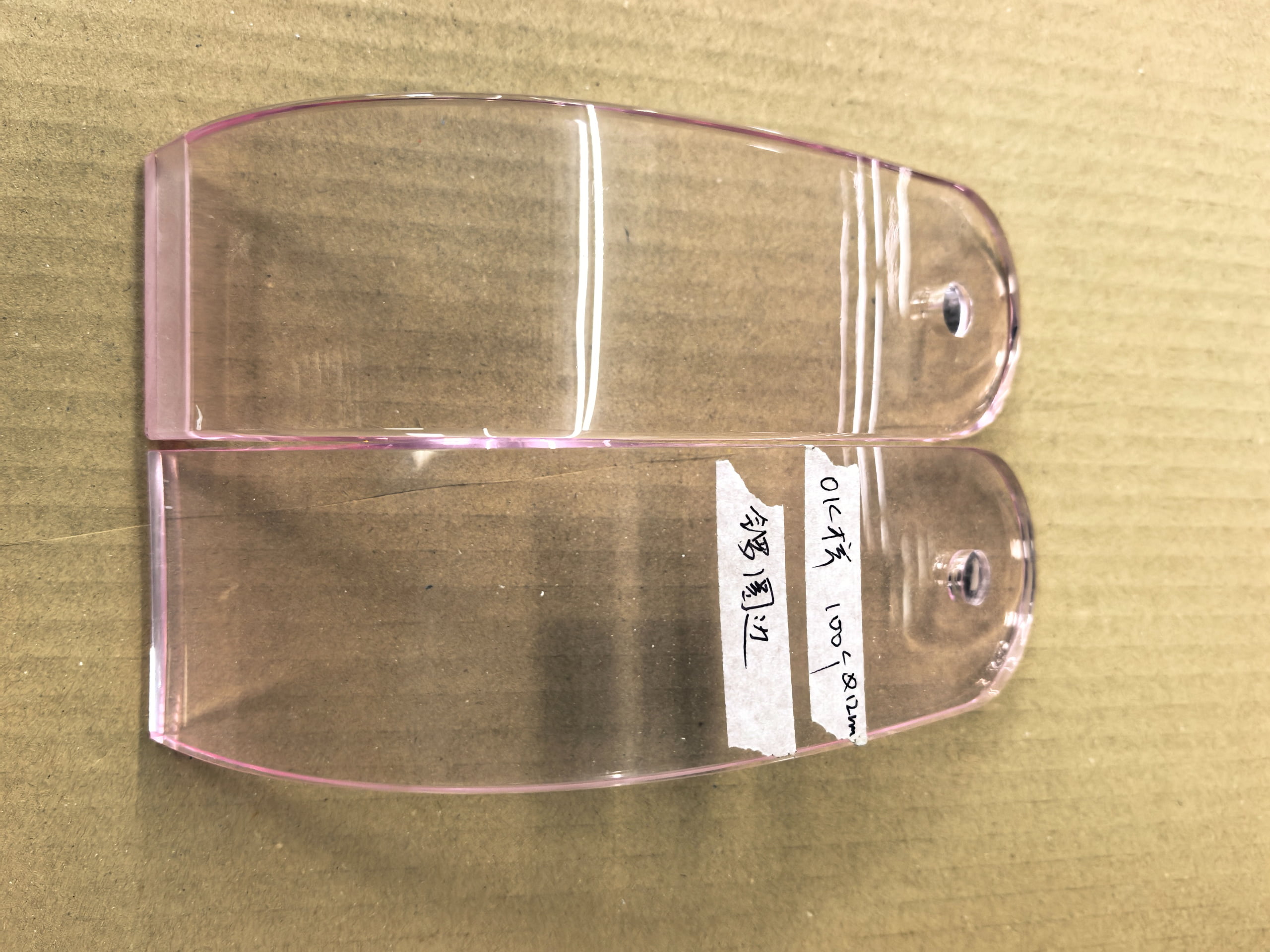

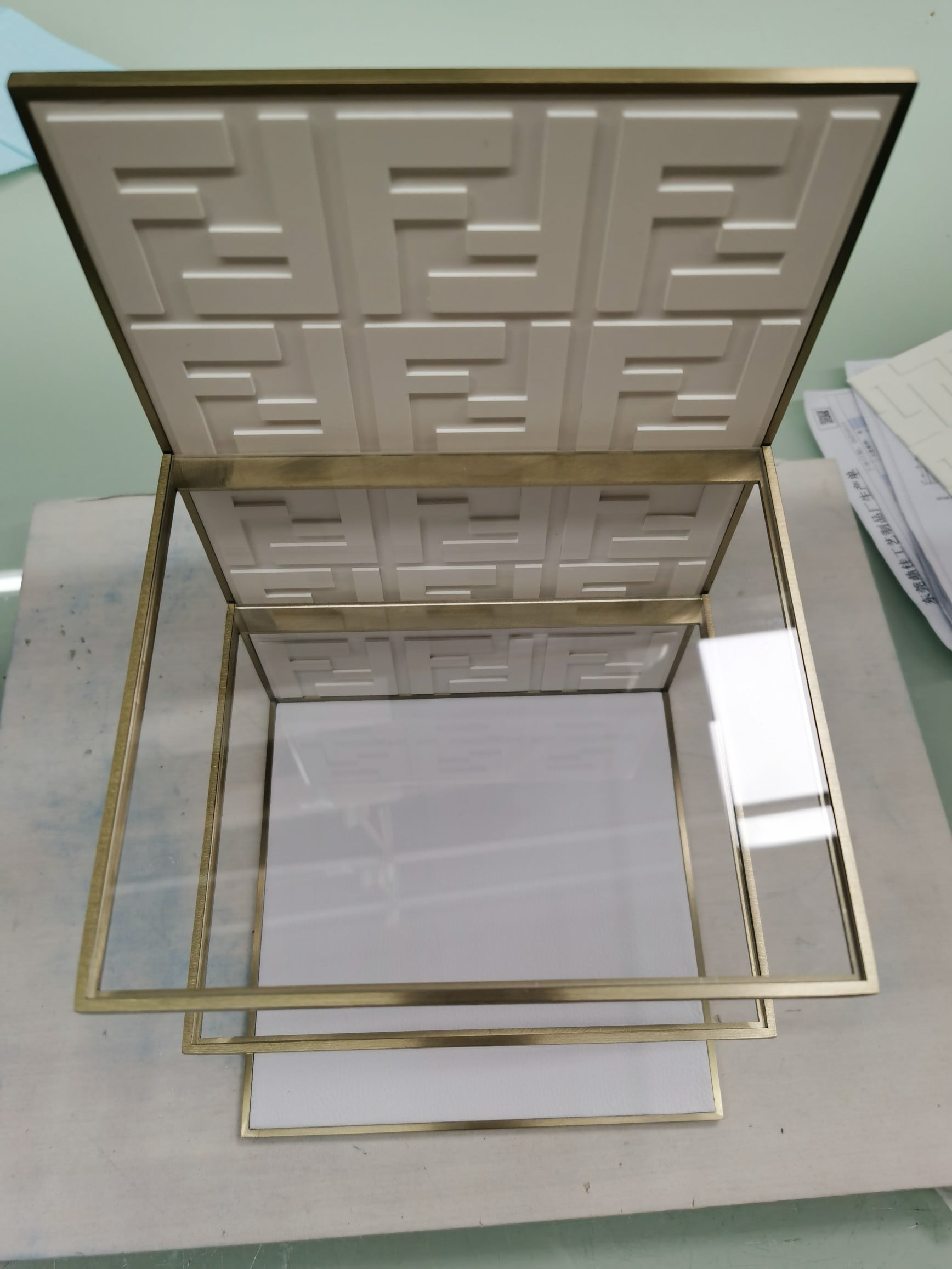

Physical sample
Photos show Samtop project work. They may not be from the same project.
A Physical Sample Shows What Drawings May Miss
Drawings show the size, materials, and appearance of a retail display. But some problems only become clear when the parts are made and assembled.
A perfume bottle may fit its holder but be difficult to remove. Printed graphics may look correct in the artwork but appear out of place next to a metal frame. A moving part may work on its own but touch other parts after assembly.
These problems do not always mean the design is wrong. They are details we need to check and solve before repeat production.
At Samtop, we build and check physical samples to find these issues, understand what causes them, and make agreed changes before moving forward.
We follow your approved design and focus on making it work in real production, rather than changing the original creative concept.
Engineering Expertise
Six Production Issues We Help Solve Through Prototyping
A prototype helps us find and solve problems before repeat production. When we find an issue, we check the parts involved, look for the cause, discuss possible solutions with the customer, and test the agreed changes on the physical sample.

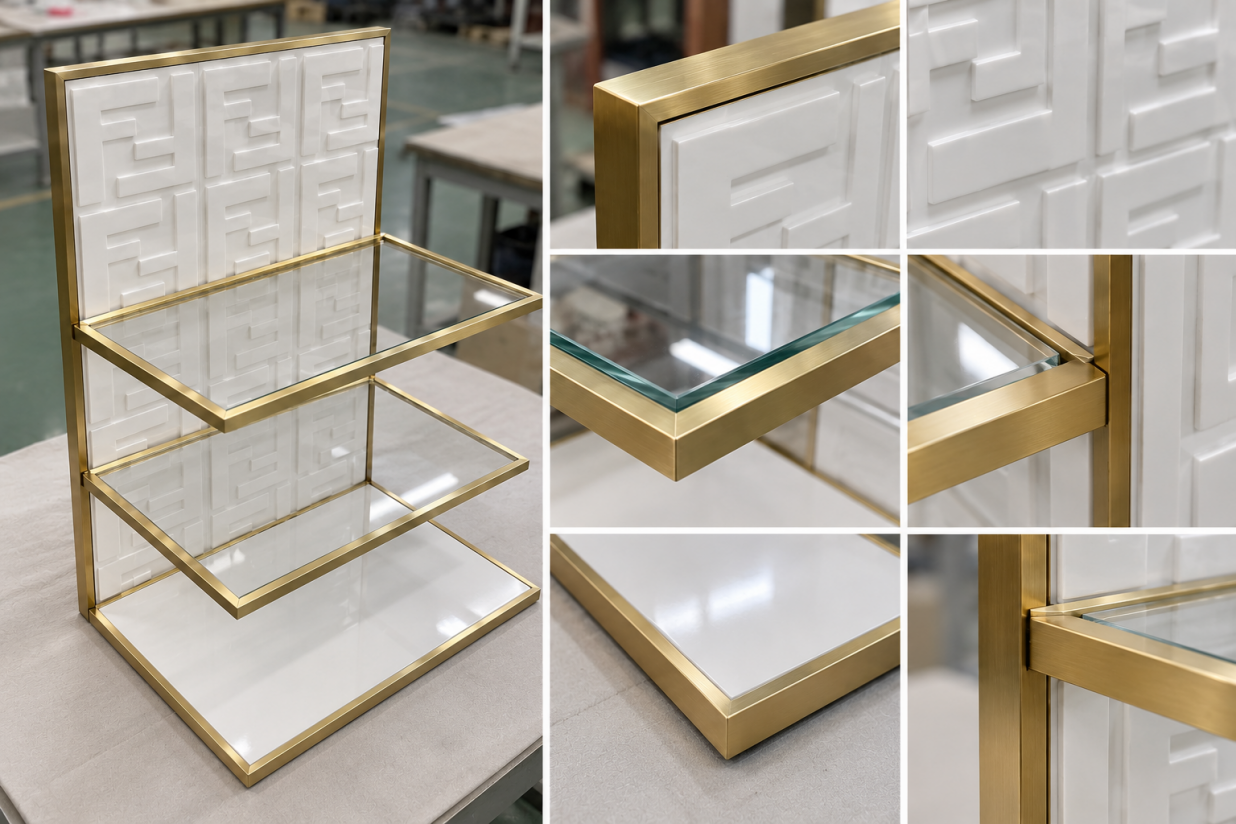

When Different Materials Do Not Fit Together Properly
A retail display may combine painted MDF, metal, acrylic, and glass. Each part may look correct on its own, but gaps, uneven joints, or fixing problems can appear when the parts are assembled. Samtop checks how these materials fit together on the assembled sample -- joints, edges, openings, fixing points, and the order of assembly. If a metal frame does not fit properly against an MDF body, we check whether the problem comes from the part dimensions, the fixing position, or the way the parts are assembled. We then discuss the possible adjustment with the customer and check the result after assembly.
Why it matters for production: Confirmed joints and fixing details help keep assembly consistent when producing more units.

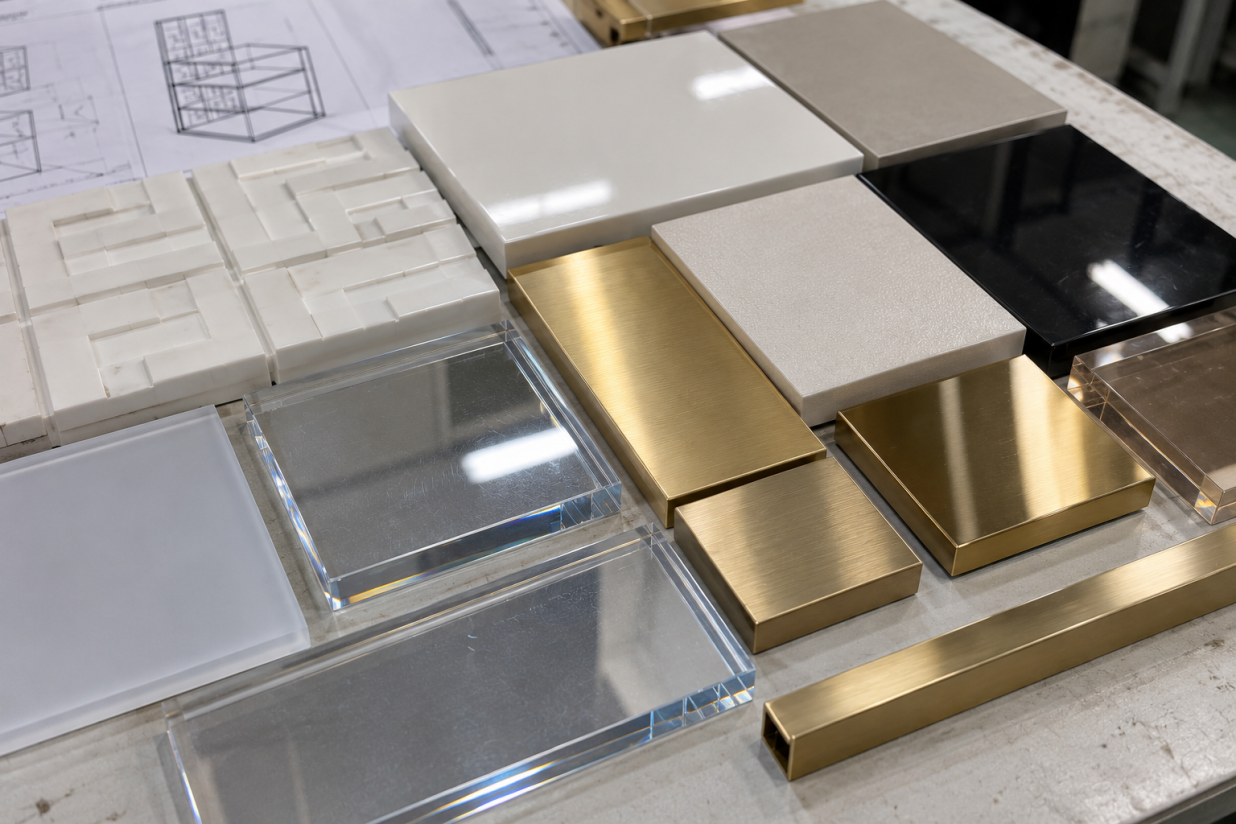

When the Same Color Looks Different on Different Materials
The same brand color may look different on painted MDF, acrylic, and coated metal. Each material reflects light differently, and the coating and gloss level can also affect the final appearance. Samtop compares physical finish samples instead of relying only on Pantone codes or screen images. We check the color, gloss, texture, and how the finishes look next to each other. Once the customer approves the finish samples, we use the confirmed samples as references for production, rather than relying on general descriptions such as "champagne gold" or "high gloss."
Why it matters for production: Approved physical samples give production teams a clear reference for the color and finish of each component.

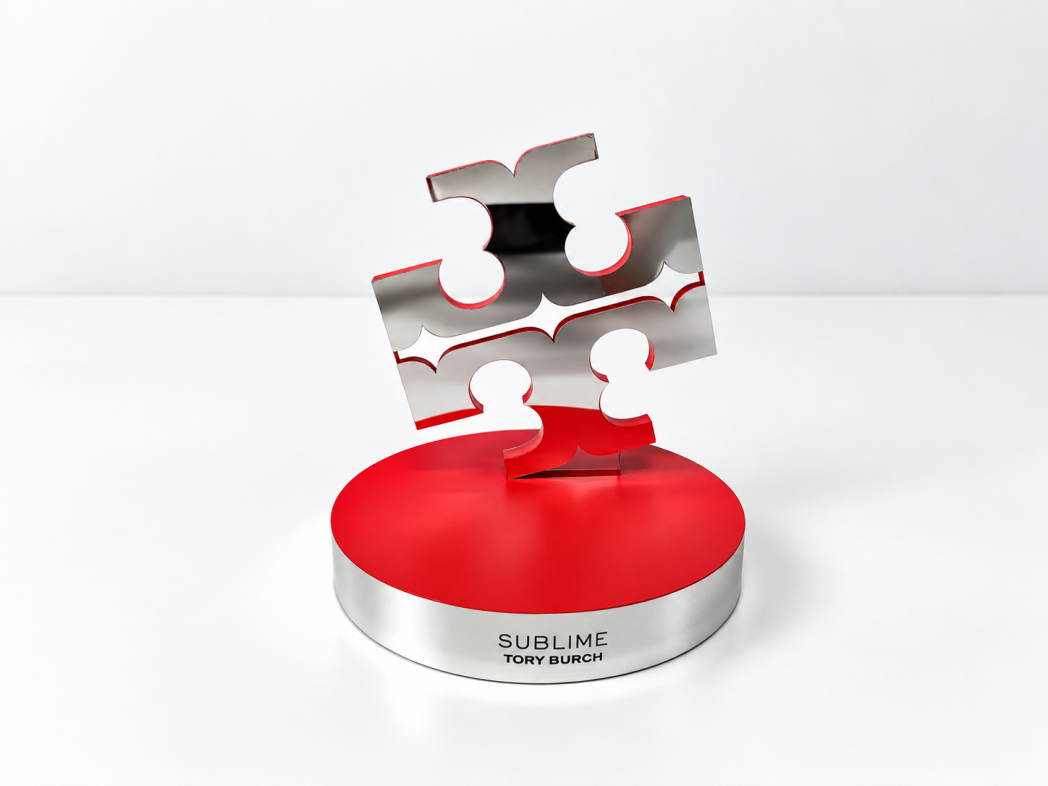

When a Product Fits but Is Difficult to Remove
For perfume and cosmetic displays, making sure the product fits into its holder is only the first step. Customers also need to remove and put it back easily. Samtop checks the holder using the actual product or an agreed sample bottle. We look at how the product fits, how easily it can be removed, and how the display looks when the product is taken away. We check the updated sample in three situations: with the product in place, while removing it, and after it has been removed.
Why it matters for production: An approved holder helps ensure the product is displayed properly and can be removed and replaced easily in the store.
When Printed Graphics Do Not Line Up After Assembly
Small positioning differences are easy to notice on mirror acrylic and other reflective surfaces. A printed logo may look correct on its own but appear out of place when the panel is installed next to a metal frame, product opening, or decorative trim. Samtop checks the approved artwork, the printed panel, and its position on the assembled display. Reprinting the logo may not solve the problem if the panel itself is in the wrong position. After discussing the adjustment with the customer, we check the updated panel again on the assembled display.
Why it matters for production: Confirmed graphic positions and assembly details help keep logos and printed graphics aligned across multiple units.
When Moving Parts Do Not Work Properly After Assembly
A drawer, rotating part, or gear mechanism may work well on its own but become difficult to move after the display is fully assembled. Samtop checks how these parts move when the surrounding panels, fittings, and decorative parts are installed. If something blocks the movement, we check the space between parts, their positions, fixing points, and how far they need to move. Making a gap wider may help a moving part work smoothly, but it could also create a visible gap or cause another problem. We review possible changes with the customer to make sure they do not affect the approved appearance.
Why it matters for production: An approved sample gives the production team a clear reference for how moving parts should be assembled and how they should work.
When Lighting or Assembly Does Not Work as Expected
An illuminated logo may look uneven because of the LED position, light-diffusing material, or the space inside the display. Samtop checks the lighting effect on the physical sample, including cable positions, access to electrical parts, and the space needed for installation. For displays that need to be packed in separate parts and assembled at the final location, we carry out a trial assembly to check how the parts fit together. Some screws may be difficult to reach, parts may be hard to identify, or the assembly order may need to be changed.
Why it matters for production: Confirmed lighting and assembly details help guide production, packing, and the setup instructions for the local team.
Our Process
From First Sample to Approved Production Reference
Finding a problem is only the first step. Our sampling process helps identify the cause, agree on changes, and check the result before production.
Define the Sampling Scope
Decide What Needs to Be Checked
We review your approved rendering, technical drawings, product sizes, and material references. Together, we identify what needs to be checked on a physical sample.
Output: Agreed sampling priorities and project references.
Build and Check the Sample
See How the Parts Work Together
We make the sample based on agreed drawings and construction details. We assemble the parts and check joints, product access, printed graphics, moving parts, and surface finishes.
Output: A list of findings that need review or adjustment.
Review the Cause and Agree on Changes
Decide What Needs to Be Adjusted
One problem may have several possible causes. Samtop checks the details and discusses possible solutions with the customer. Any changes that affect the approved design must be confirmed before we make them.
Output: Agreed changes and updated project references.
Recheck and Approve
Confirm the Final Sample Before Production
After making the agreed changes, we check the affected parts again on the physical sample. Once the customer approves, we confirm which drawings, finish samples, and artwork will be used as production references.
Output: Approved physical sample and confirmed production references.
Define the Sampling Scope
Decide What Needs to Be Checked
We review your approved rendering, technical drawings, product sizes, and material references. Together, we identify what needs to be checked on a physical sample.
Output: Agreed sampling priorities and project references.
Build and Check the Sample
See How the Parts Work Together
We make the sample based on agreed drawings and construction details. We assemble the parts and check joints, product access, printed graphics, moving parts, and surface finishes.
Output: A list of findings that need review or adjustment.
Review the Cause and Agree on Changes
Decide What Needs to Be Adjusted
One problem may have several possible causes. Samtop checks the details and discusses possible solutions with the customer. Any changes that affect the approved design must be confirmed before we make them.
Output: Agreed changes and updated project references.
Recheck and Approve
Confirm the Final Sample Before Production
After making the agreed changes, we check the affected parts again on the physical sample. Once the customer approves, we confirm which drawings, finish samples, and artwork will be used as production references.
Output: Approved physical sample and confirmed production references.
The number of revisions and any additional samples depend on the project requirements and agreed scope.
Sample Types
What Type of Sample Does Your Project Need?
The right type of sample depends on what needs to be checked, not just the size of the display.
Material & Finish Sample
Best for Checking Color and Surface Finish
Used to compare colors, gloss levels, textures, metallic finishes, or printing on the actual material. A physical finish sample helps the customer approve the appearance before the same finish is used on larger parts.

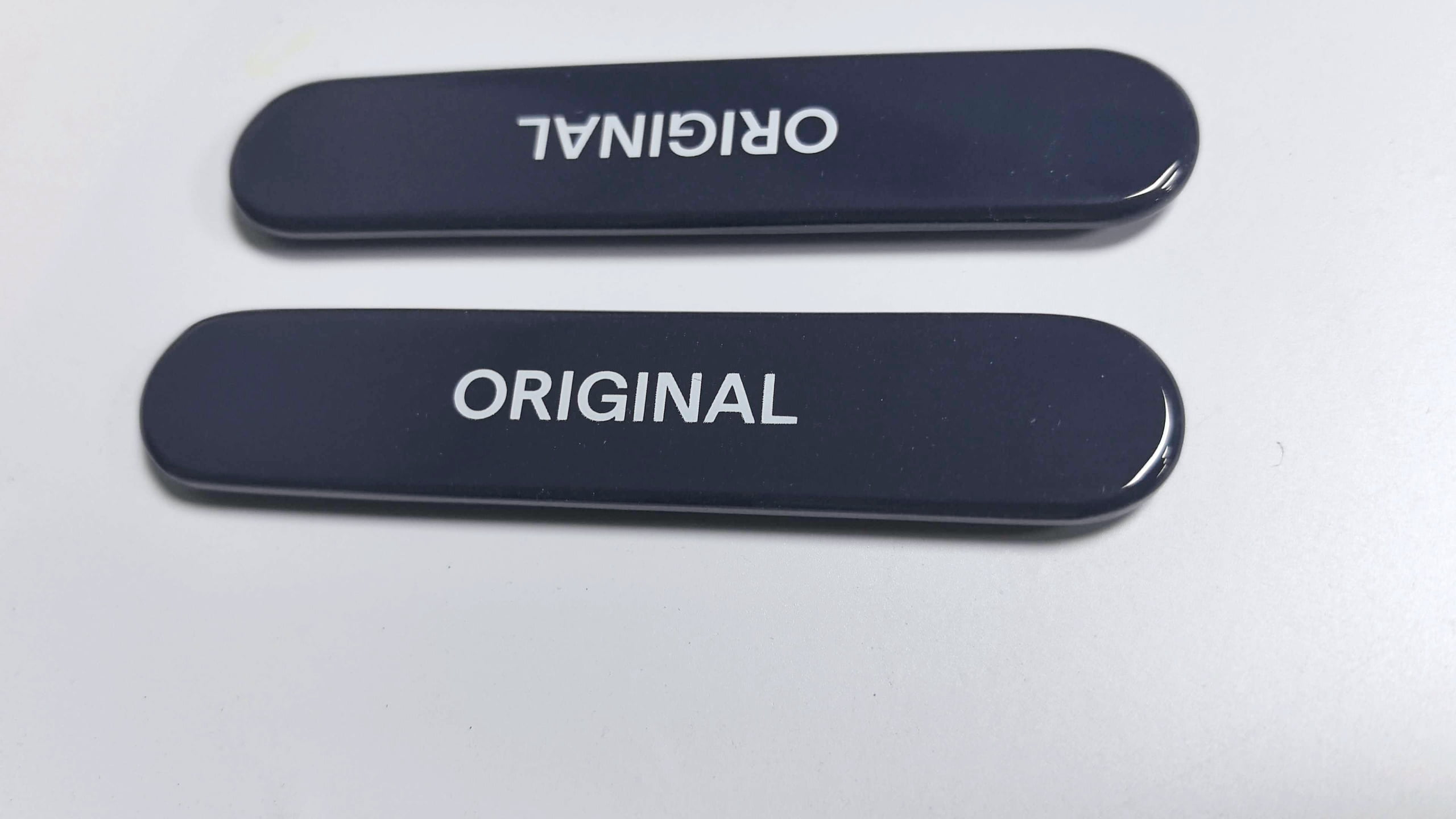

Component Sample
Best for Checking Fit and Function
Used to check specific parts, such as product holders, printed panels, joints, or moving mechanisms. A component sample helps us check how a particular part fits or works without building the entire display first.

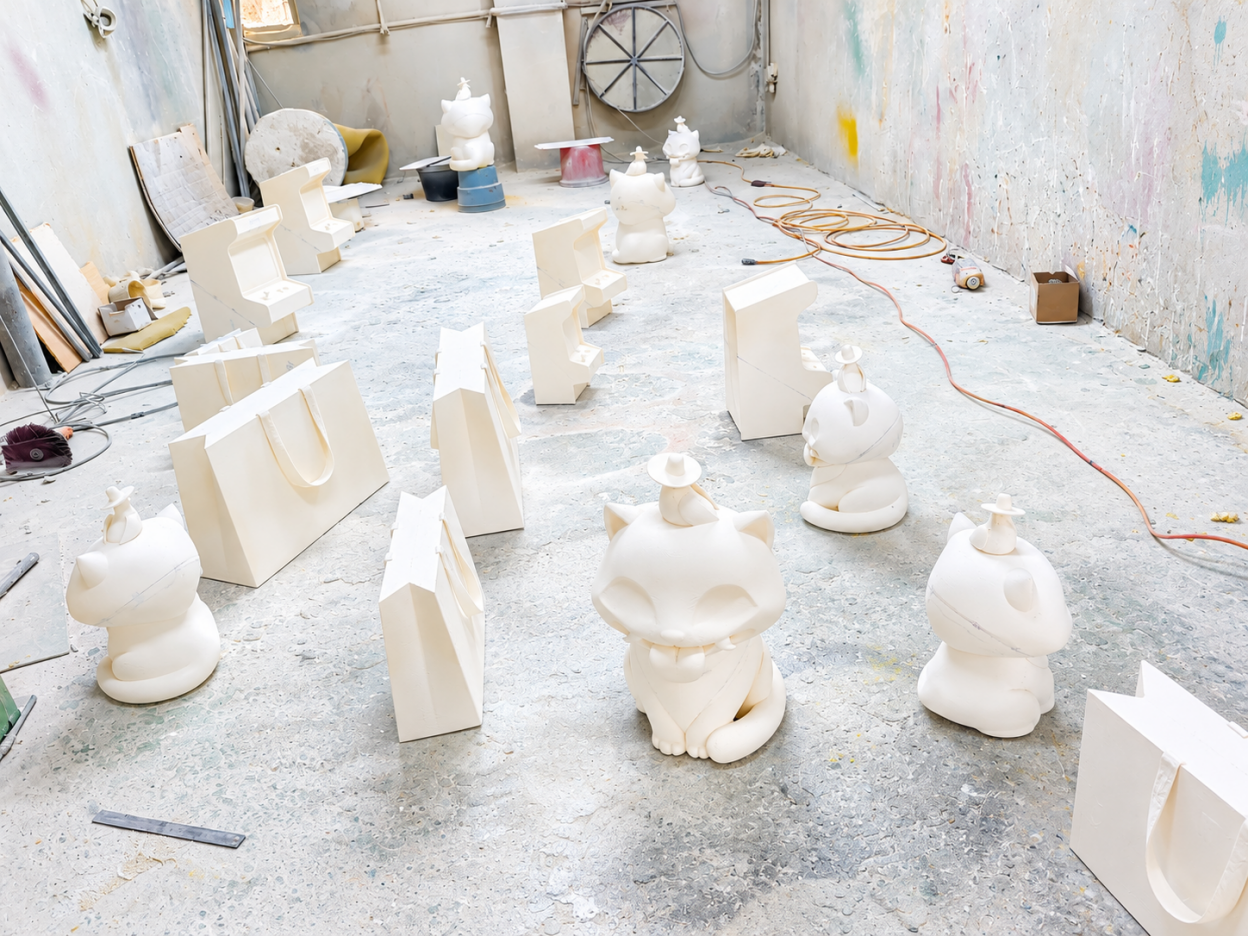

Full Display Prototype
Best for Checking How All Parts Work Together
Used to check how different materials, product holders, lighting, graphics, and moving parts work together in a fully assembled display. A part may work well on its own but cause problems when installed in the complete display.

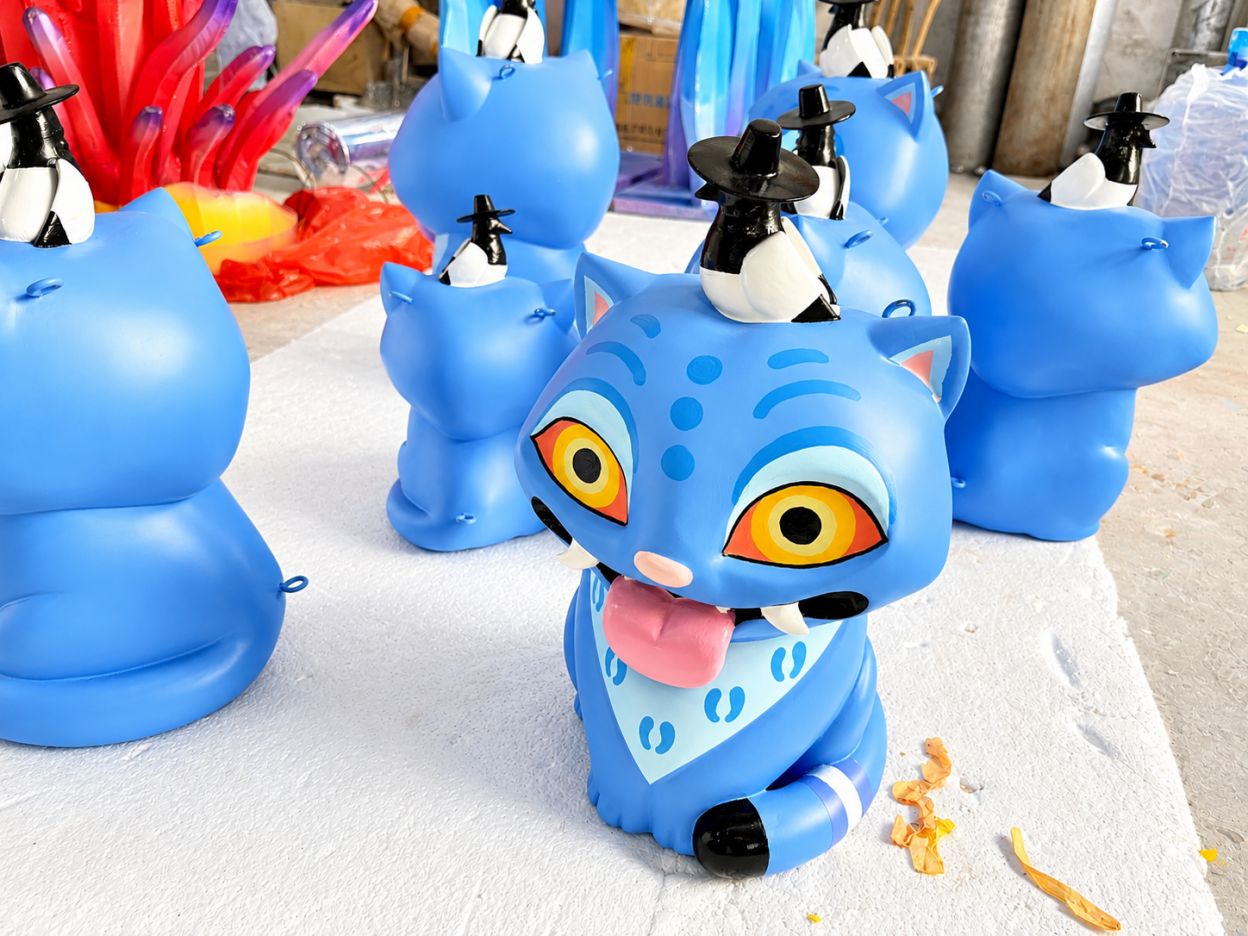

Pre-production Sample
Best when agreed details need final confirmation
Where required, a pre-production sample helps confirm the appearance, construction and functional requirements intended for repeat manufacturing.
These sample types are not a fixed sequence. The right approach depends on your project requirements.
Production Reference
What Should Be Confirmed Before Production Starts?
An approved physical sample is an important reference for production. But the key details also need to be clearly recorded. The physical sample works together with technical drawings, agreed tolerances, and production specifications. It does not replace them.
Approved Physical Sample
Confirmed Production References
Repeat Production
Production QC
Approved Physical Sample
Confirmed Production References
Repeat Production
Production QC
The goal is not just to confirm how the sample looks. It is also to make sure the production team knows which details to follow when making more units. The approved sample does not replace QC -- it works alongside confirmed drawings, specifications, and agreed tolerances.
Engineering Examples
How Prototyping Helps Solve Production Issues
These three examples show the types of engineering questions Samtop reviews during physical prototyping. The checks and changes needed depend on the actual project. Final decisions are based on the sample results, project requirements, and customer approval.

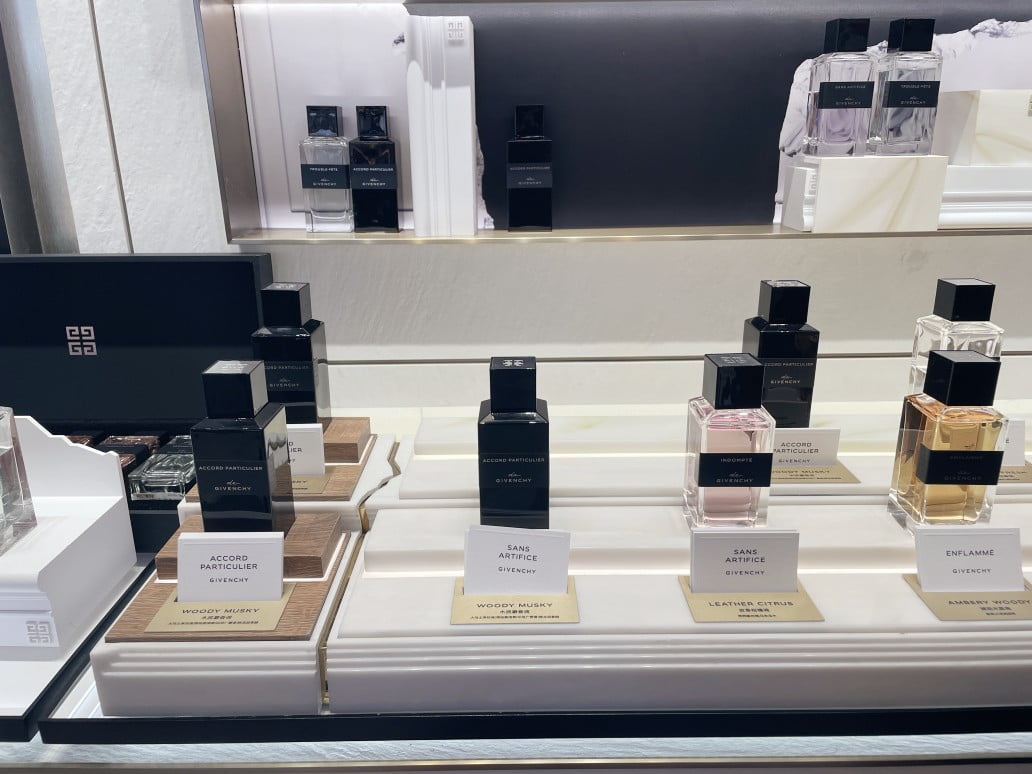

Perfume Display -- Acrylic Parts Near Fragrance
Project Requirement
A perfume display uses acrylic parts close to tester bottles. These parts may come into contact with perfume or alcohol-based liquids.
Engineering Question
Is the selected acrylic material suitable for possible contact with perfume? Some acrylic parts may crack when exposed to certain chemicals, especially if they also have stress from cutting, bending, or assembly.
Samtop's Approach
We review the expected contact with perfume, the acrylic material, and possible risks from fabrication. If needed, we discuss other material options, construction changes, or suitable testing methods with the customer.

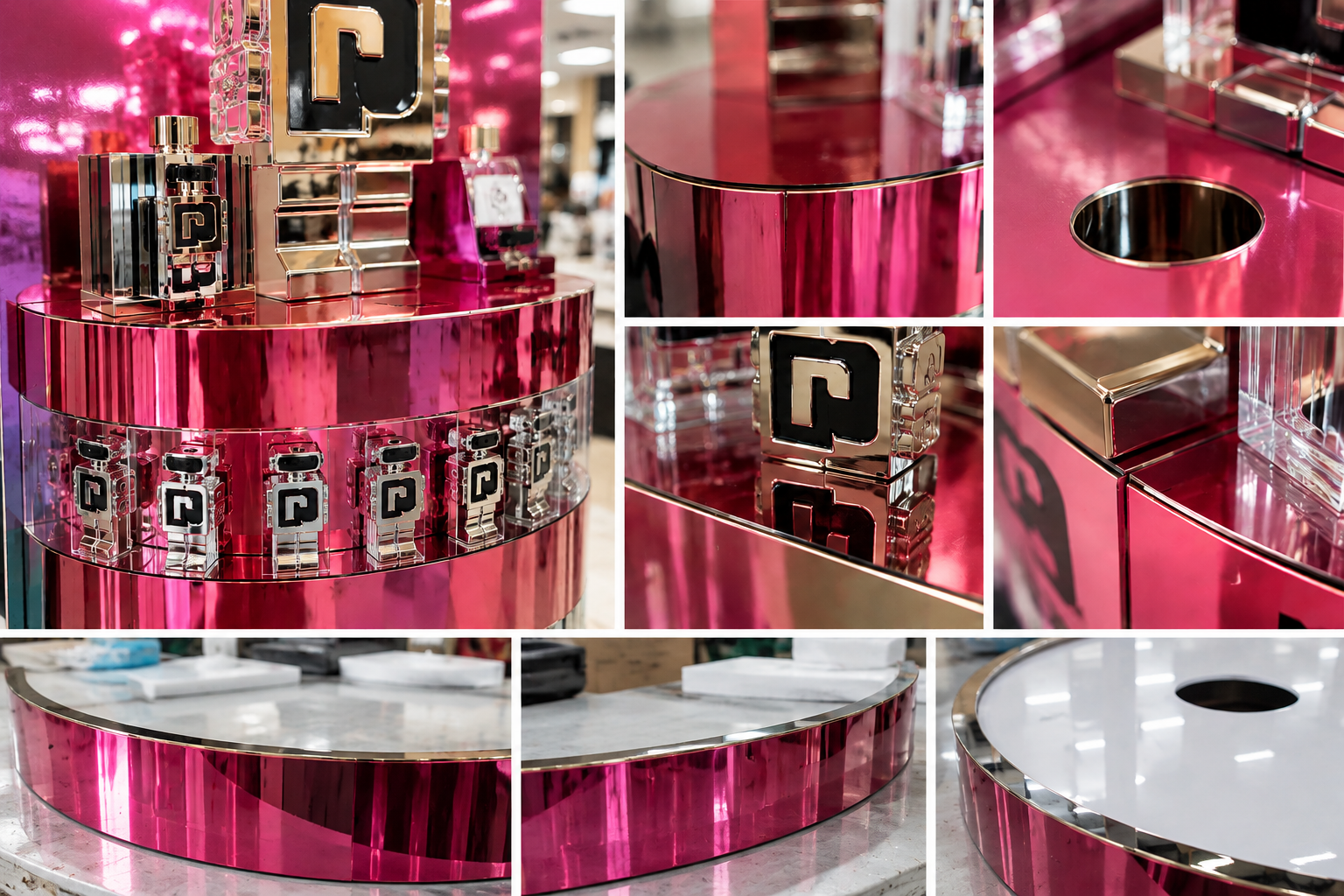

Multi-material Counter Display -- Mirror Acrylic Graphics
Project Requirement
A counter display combines high-gloss MDF, metal details, glass, and mirror acrylic graphics.
Engineering Question
Will the printed graphics line up correctly with the surrounding parts after assembly?
Samtop's Approach
We compare the printed panel with the approved artwork and check its position on the assembled display. If the graphics look out of place, we check whether the problem comes from printing, part dimensions, or assembly position before discussing changes.

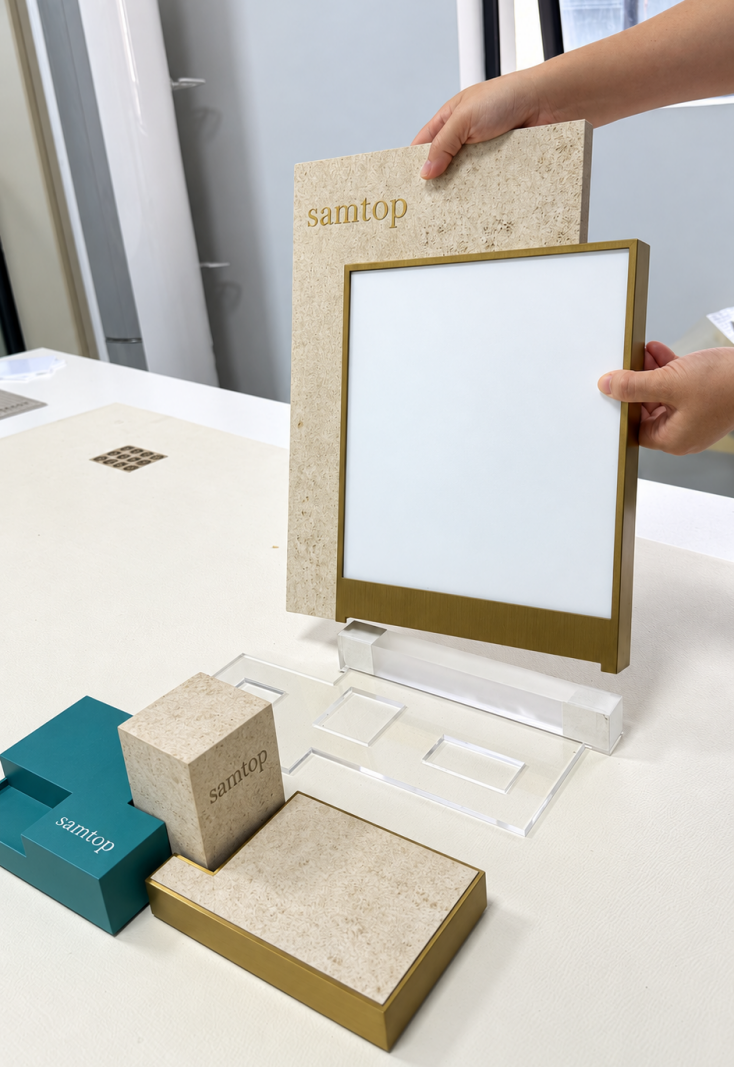

Counter Display -- Moving Parts
Project Requirement
A counter display includes moving parts within a structure made from several components.
Engineering Question
Will the moving parts work properly after the complete display is assembled?
Samtop's Approach
We check how the parts move, the space around them, the fixing points, and nearby components on the physical sample. If something blocks the movement, we review the affected parts and fixing methods before discussing possible changes.
Get Started
What Do We Need to Start Your Prototype?
Samtop works with brands, VM teams, retail design agencies, and sourcing teams that already have an approved design or a developed concept. You don't need to have every detail ready. You can start by sending us the information you have.
Please Share:
We will review your information and let you know what needs to be confirmed before sampling.
Send Your Project FilesContact Samtop
FAQ
Frequently Asked Questions
Can Samtop make a prototype from our approved rendering?
Yes. We work from approved renderings, technical drawings, and developed designs. We help review production details, build physical samples, and prepare for manufacturing. We do not provide original creative design.
Do we need a full prototype, or can we start with a component sample?
It depends on what needs to be checked. A material or component sample may be enough to confirm a specific detail. A full prototype is useful when several materials and parts need to work together.
What happens if the first prototype has a problem?
We check the parts involved, look for the cause, and discuss possible changes with your team. Once the changes are agreed, we make the adjustments and check the updated sample.
Do we need to send actual products for sampling?
Not always. However, the actual product or an agreed sample is helpful when we need to check product fit, removal, or the space around the holder.
How does an approved sample help with production?
The approved sample, together with confirmed drawings, finish samples, artwork, and specifications, gives the production and QC teams a clear reference. Agreed tolerances and any later changes also need to be controlled.
Start Your Project
Have an Approved Retail Display Design Ready for Sampling?
Send us your rendering, drawing, or project brief. Samtop can review the materials, product fit, finishes, and moving parts that need to be checked on a physical sample. We can then discuss the next steps for your prototype.
